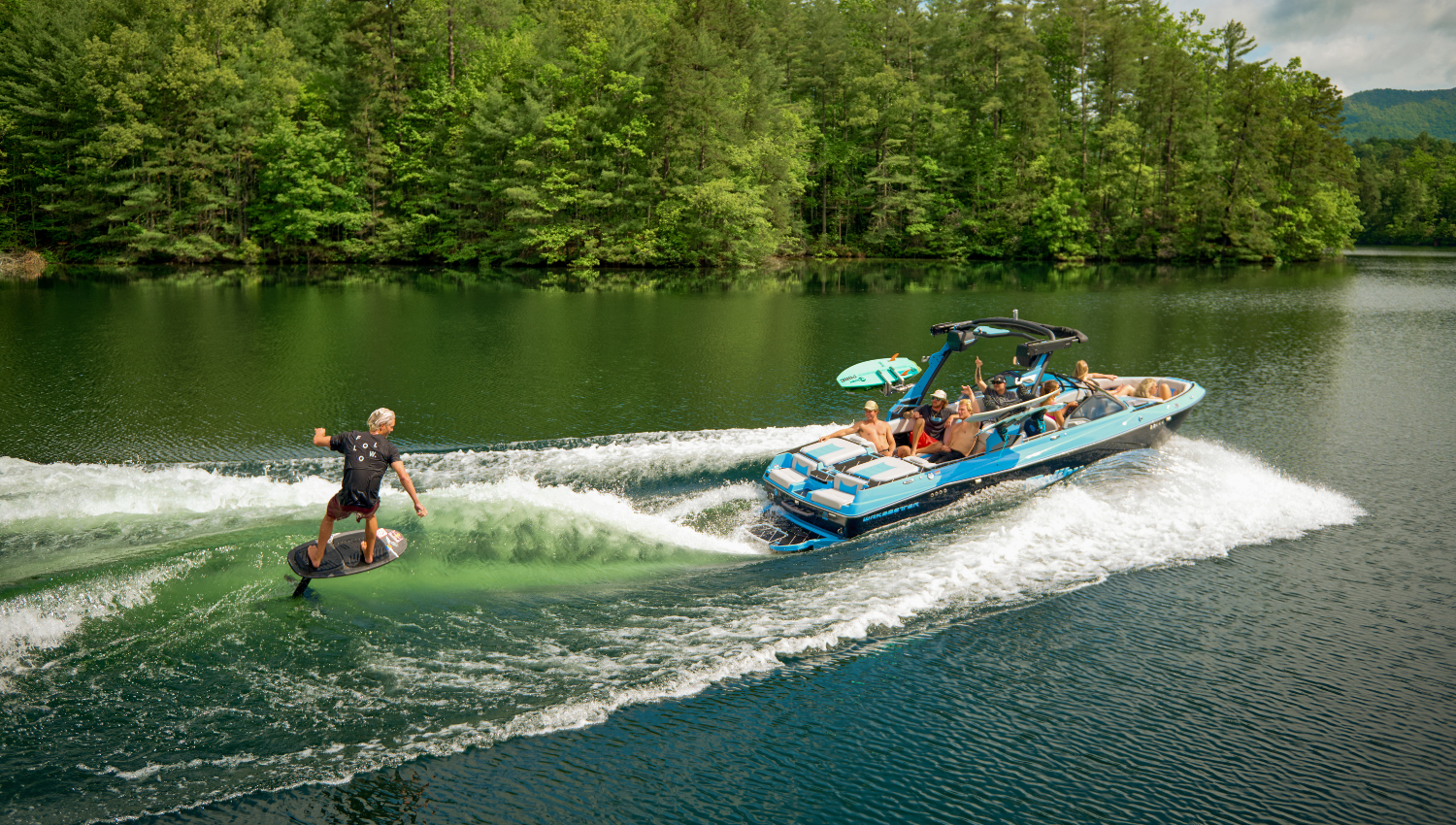

23 LSV Wakesetter

The new 23 LSV can be configured with either the diamond multi-sport hull™ to leverage all sporting disciplines, or the wake plus hull™ to maximise wake performance for board sports. Combined with Malibu’s power wedge III™ and surf gate™ technology, wakes and waves can be dialled-in to suit individual riders so that all abilities can experience the performance Malibu Boats’ name was built on. A first for the LSV line of Malibu boats the new 23 LSV features a stylish and convenient transom walk-over.

Build A 23 LSV Wakesetter
  • Specifications

    • Length Overall

      23’ / 7.01 m

    • BEAM

      102” / 2.60 m

    • Draft (hull)

      27” / 0.69 m

    • Persons Capacity

      15 People

    • Maximum Weight

      2,115 lbs / 959 kg

    • Dry Weight

      4,500 lbs / 2,041 kg

    • Fuel Capacity

      65 gal / 246L

    • Standard Torque

      410

    • Max Torque

      575

    • Std Ballast

      1340lbs / 608kg

    • Max Ballast

      4240lbs / 1923kgs

    • Hull Type

      Wake Plus / Diamond

  • CALL (07) 5529 2616 FOR A QUOTE

    • Things to consider

      - Power

      - Options

      - Accessories

      - Insurance

  • Standards

    • AUSTRALIAN STANDARDS

      The Australian made 2021 Wakesetter 23LSV is standard with a close cooled Malibu Monsoon M5Di 5.3L engine including Forward-Neutral-Reverse transmission.

      Walk through open bow design

      Walkover hatch design

      Malibu Monsoon M5Di 5.3L EFI marine V8 engine with standard closed cooling

      Livorsi throttle/shifter

      7-inch portrait touch screen Command Centre with Wi-Fi connectivity, customer throttle profiles, stereo control, service reminders and more

      12-inch high resolution IPS touch screen featuring ballast monitoring, GPS cruise, Power Wedge and Surf Gate controls and more

      Custom rider pre-sets for ballast, speed control, Power Wedge and Surf Gate (if fitted)

      Speed (cruise) control – paddle wheel and Zero Off GPS

      Keyless push button start

      Malibu stereo system with amplifier, 8x 8” Wet Sounds speakers, Bluetooth connectivity and auxiliary inputs (USB & 3.5mm)

      100% fibreglass construction utilising FibECS

      In laminate acoustic insulation (Malibu sound suppression layer)

      Full fibreglass floor liner and cockpit with snap out aqua mat tuffed cockpit carpet insert

      G5 wake tower with new folding hinge design incl Malibu bimini top, pair of swing-in combo board racks and quick release latching system.

      Fast fill HI FLO eMLS mid ship ballast tank (245 litres)

      Fast fill HI FLO eMLS rear sub floor ballast tanks (total 370 litres; 185 litres each)

      HI FLO eMLS bow ballast tank (118 litres)

      Digital ballast monitoring system (BMS)

      Dual auto bilge pumps, bilge blower, navigation lights and horn

      LED courtesy lights, accent lighting and illuminated storage areas

      Tilt helm rack and pinion steering with adjustable rudder

      Stainless steel steering components

      Leather wrapped sports steering wheel

      Marlin 29oz & Guardian 30oz mildew resistant, UV stabilised vinyl interior with Permablok3 ® and Silverguard ® technology

      Interior French stitched using 100% PTFE totally UV and weather resistant thread

      Triple density ‘Tri-Ply’ vented foam cushioning

      Anodised billet aluminium grab handles with Malibu logo throughout

      Bow in-fill cushion

      Bow walk-through wind block

      Helm seat with swivel, flip-up bolster, new aluminium slide mechanism and side saddle seating

      Veralex tempered glass windscreen with illuminated model designated and bow access door

      PTM high definition 100-degree wideview mirror with fold down windshield mount

      Lockable glove box with light, audio inputs and billet door

      1 ¼ stainless prop shaft with cutless shaft bearings

      4 blade CNC cut and tuned NIBRAL prop

      Retractable ski pole with swivel head

      Removable Igloo esky

      Removable fibreglass swim platform with soft grip mat and stainless-steel brackets

      Transom ski tow point with grab handle

      Dual flip up petrol fillers

      3D Malibu and Wakesetter emblems

      Transom staging seats with under storage tubs

      Stainless rub rails

      Oversized stainless-steel cup holders

      External access stainless steel flush kit

      3mm black soft grip storage areas

      High capacity 800CCA marine battery

      Battery isolator switch

      5-year warranty, terms and conditions apply (usage situations may impact warranty conditions)

    • STANDARD TRAILER FEATURES

      Full hot dip galvanised custom fitted tandem Easytow trailer

      15” Alloy Malibu branded wheels

      Dexter electro-hydraulic 4-wheel disc break-away brakes (in-car controller required)

      Heavy duty 30amp 12 pin flat electrical plug (12 pin car socket required)

      High quality waterproof LED lighting

      4-way bearer system

      Full width guards with carpeted in-fills

      Spinner guide poles

      Rear trolley wheels

      Exclusive pivoting swing away draw bar

      Premium jockey wheel and winch

      Round guards and valance

      Boat buckle tie downs

  • CALL (07) 5529 2616 FOR A QUOTE

    • Things to consider

      - Power

      - Options

      - Accessories

      - Insurance

  • Options

    • Optional Features

      Customise your Malibu just the way you like it, call us on (07) 5529 2616 to find out the endless possibilities!

  • CALL (07) 5529 2616 FOR A QUOTE

    • Things to consider

      - Power

      - Options

      - Accessories

      - Insurance

Spec Sheet

Want to download the spec sheet + weights and dimensions for this 2021 Malibu 23 LSV Wakestter?

Warranty

5-year full factory warranty - Because every single new Malibu or Axis boat sold in Australia is meticulously handcrafted by highly trained technicians from our factory in Albury, NSW, we have the confidence to offer the industry’s best warranty program. First, we guarantee our entire boat with a Lifetime Warranty, including hulls, decks, stringers and major build components. Then, we cover the powertrain, components, interiors, and upholstery with a Full Australian Factory Five Year Warranty. We have you covered! The best words to hear in the rare case you have a problem. We back our boats as strong as we build them with an industry best 5 full years of factory warranty*. At Malibu, we build almost 1 of every 2 towboats worldwide and from bow to stern you can be sure we stand proudly behind every boat we build. Our dealers are factory trained and the best in the business, so you can rest assured should the need arise, You’re Covered!
